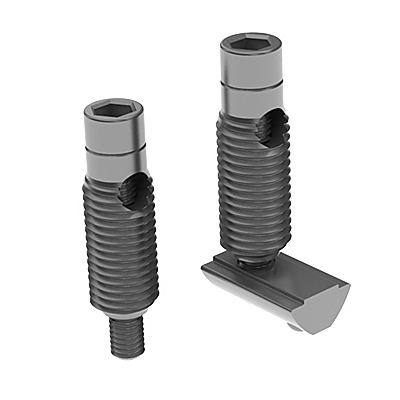

Automatic Fastening Set 40

STOCK ITEM
Application:

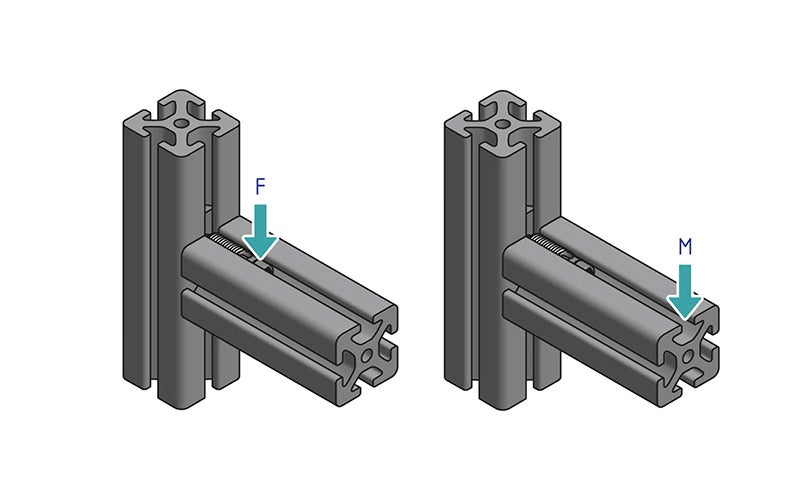

The automatic fastening set is quick and easy to use without modifying the profiles. We recommend installing them in pairs - this is also what the stress data refers to.

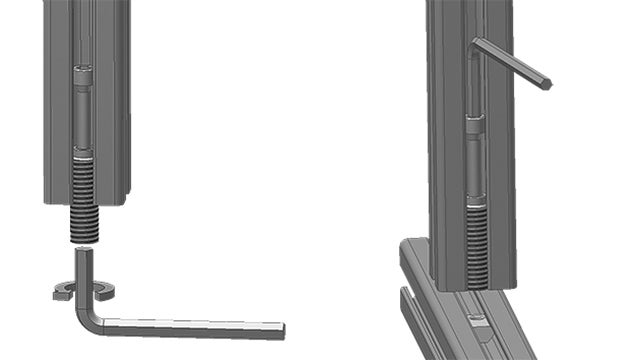

Assembly:

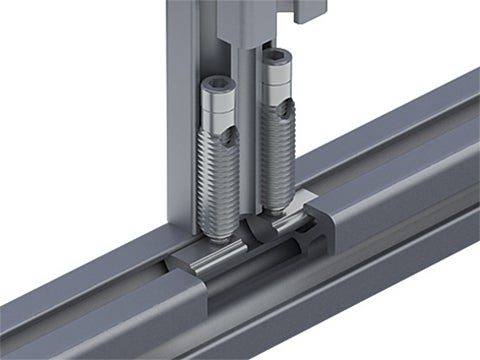

Insert the cylinder head screw into the profile slot. Screw the self-tapping hollow screw into the profile slot on the face side. Use a lubricant for this. Mount the slot nut into the profile and tighten the cylinder screw.

Supply:
M6 slot nut and MC6S ISO4762 screw included.
Read more

Product Information

Material: Zinc plated steel
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Description System Material Colour Slot Fmax (N) Mmax (Nm)
Get quote 1 Automatic connector including slot nut with notched guide step 40 - Slot 8 Zinc plated steel - 8 1500 80

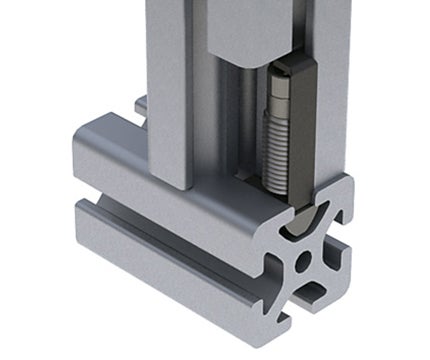

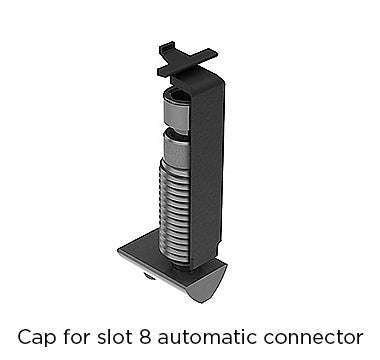

Get quote 2 Cap for slot 8 automatic connector 40 - Slot 8 Plastic (PA) Grey RAL7042 8 - -

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
