Standard Fastening Set
Cost-effective and simple connection of profiles

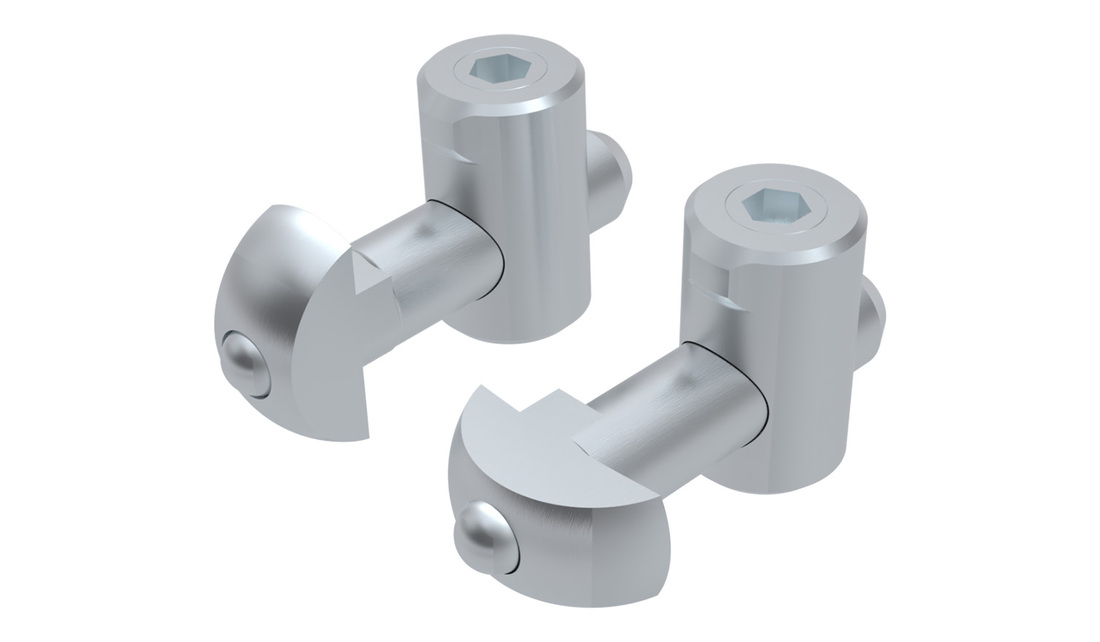

Central Fastener 40 EL / EQ
Application:
All-purpose universal fastener. The twist-in anchor, with an anti-twist feature, can be fixed in the profile groove at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
All-purpose universal fastener. The twist-in anchor, with an anti-twist feature, can be fixed in the profile groove at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Product Information
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| CAD | Compare | Get quote | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Central Fastener 40 EL | 40 - Slot 8 | Steel, zinc-plated | 26 | ||||
|
|
|
2 | Central Fastener 40 EQ | 40 - Slot 8 | Steel, zinc-plated | 26 |
