Standard Fastening Set
Cost-effective and simple connection of profiles

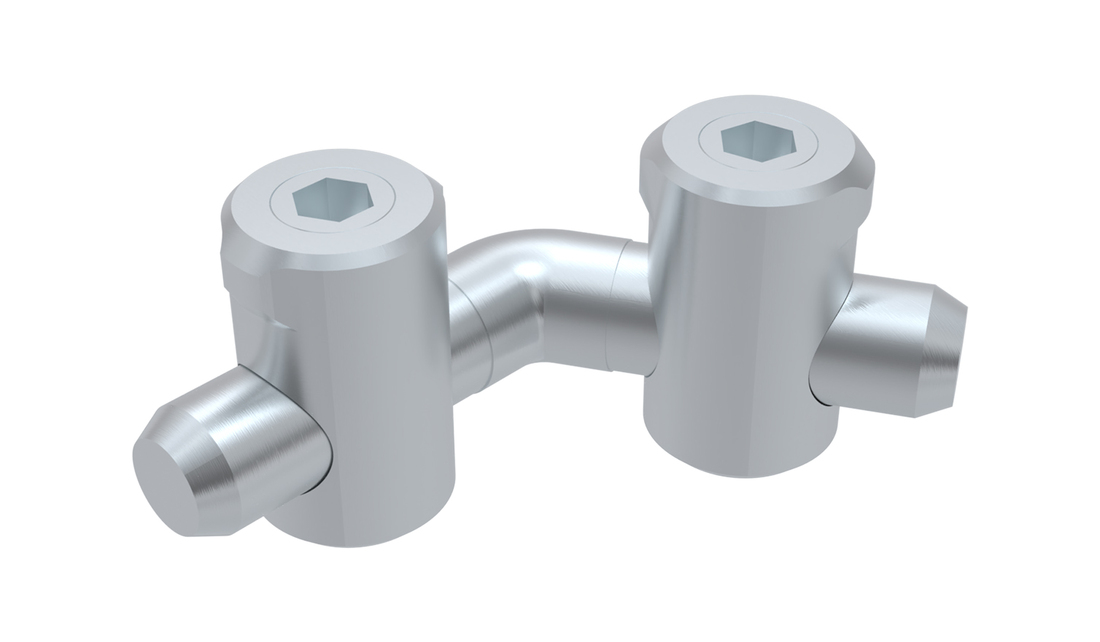

Central Fastener 40 120°
Application:
Fastener for 60° mitered joint, cut angle is 60°
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 33 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 50 mm deep; Ø 10 mm, 26 mm deep.
Read more
Fastener for 60° mitered joint, cut angle is 60°
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 33 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 50 mm deep; Ø 10 mm, 26 mm deep.
Product Information
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | System | Material | Weight (g) |
|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Central Fastener 40 120° | 40 - Slot 8 | Steel, zinc-plated | 40 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
