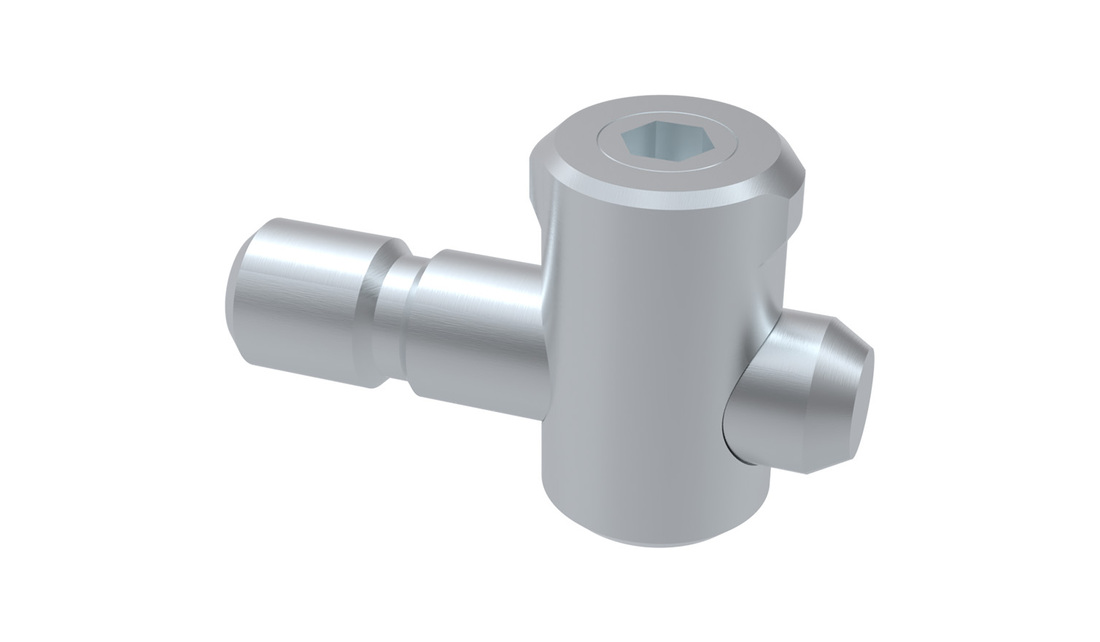

Central Fastener 40 G

Application:
Butt fastener. Used for joining two profiles end to end or for frontal attaching of plates. The anchor is screwed into the opposing profile or plate.

Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.

Product Information

Material: Steel, zinc-plated

System: 40 - Slot 8

Type: Fasteners

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	System	Weight (g)
SV1071V					Get quote	2	40 - Slot 8	22

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
