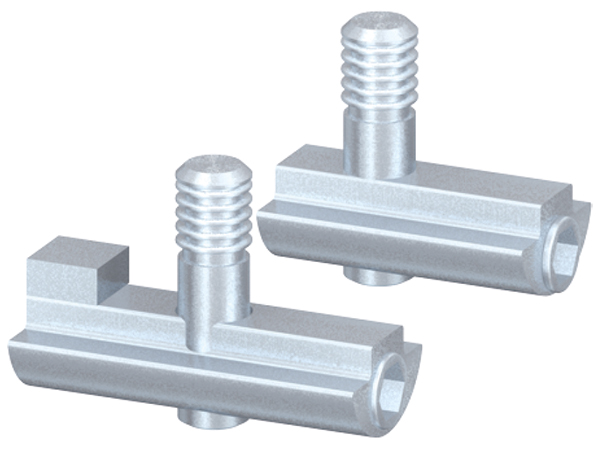

Central Fastener 40 GC / GCV

Application:
All-purpose universal fastener. Uses a slide-in t-nut with locking grub screw. The anchor with M8 thread is screwed into the opposing profile. The Central Fastener 40 GCV includes an anti-twist feature.

Assembly:
Slide t-nut portion into the t-slot from the end of the profile. Tap center hole of mating profile with an M 8 thread and screw in threaded anchor. Twist to orient indented portion of fastener so that it is facing the same direction as the barrel housing.

Product Information

System: 40 - Slot 8

Type: Fasteners

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	System	Weight (g)
SV1301V					Get quote	2	Central Fastener 40 GC	40 - Slot 8	30.7
SV1311V					Get quote	2	Central Fastener 40 GCV	40 - Slot 8	40.8

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
