Central Fastener 40 SL / SVL

STOCK ITEM

Application:

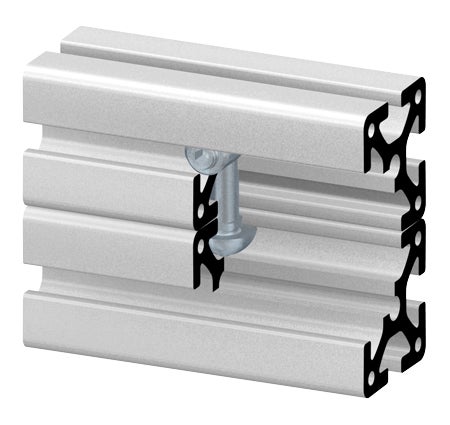

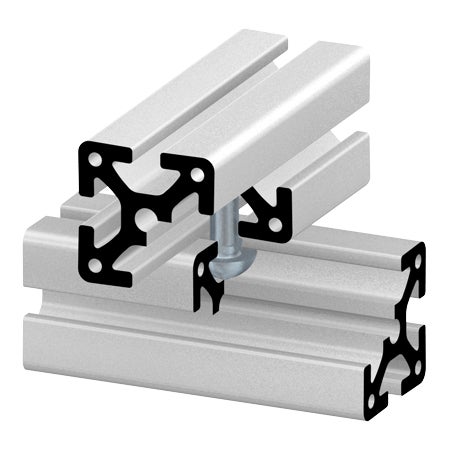

Special applications. The slide-in anchor, with an anti-twist feature, can be fixed in the profile t-slot at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot. The SVL fastener has an anti-twist feature. Both fasteners can be used for parallel and transverse connections.

Assembly:
Bore hole for the barrel housing: Ø 12 mm, 20 mm from profile end, 30 mm deep.
Bore for anchor in the profile: Ø 8.5 mm, 20 mm from profile end, 25 mm deep.

Product Information

Material: Steel, zinc-plated

System: 40 - Slot 8

Type: Fasteners

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	System	Weight (g)
SV1221V					Get quote	1	Central Fastener 40 SVL	40 - Slot 8	31

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
