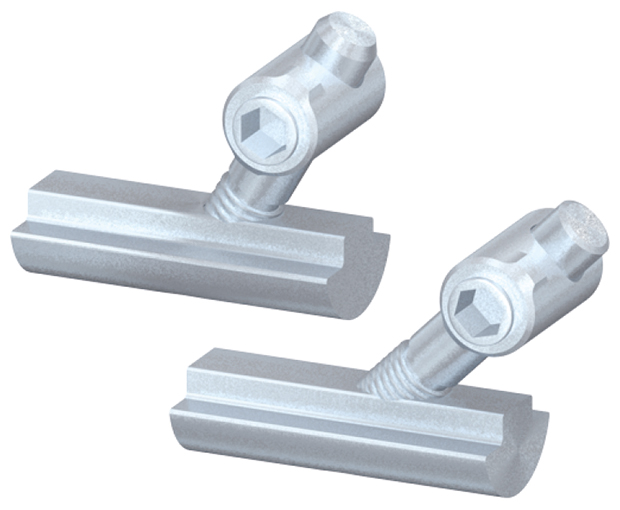

Central Fastener G 30 SS / G 45 SS

Application:

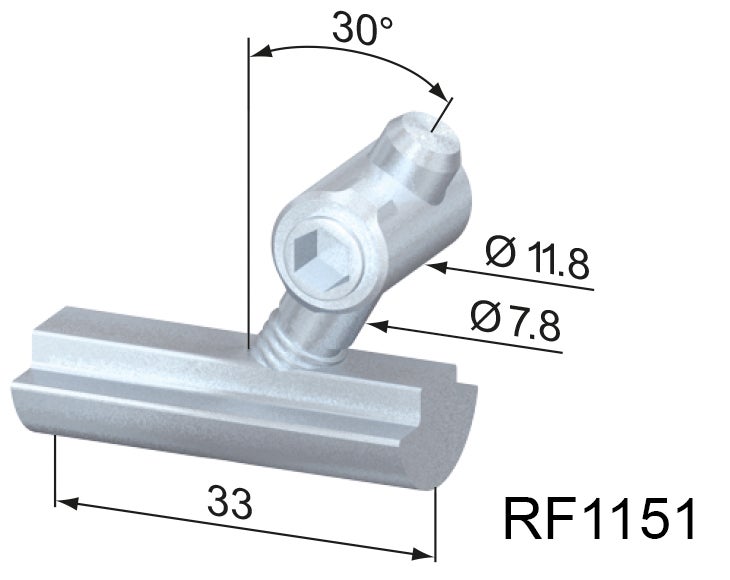

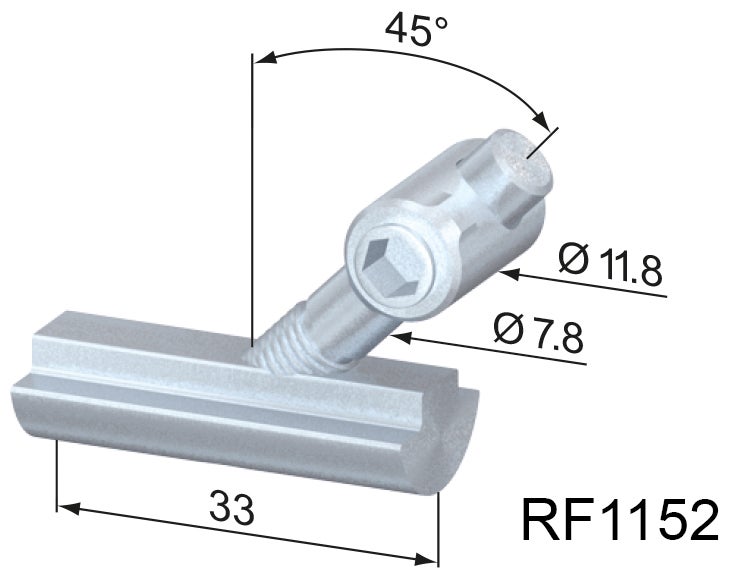

The anchor is screwed into the t-nut at either 30° or 45°. Special angles are available on request.

Assembly:

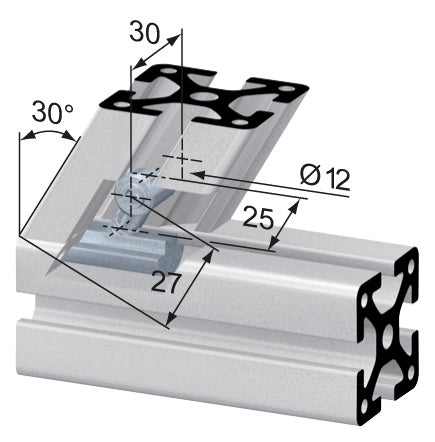

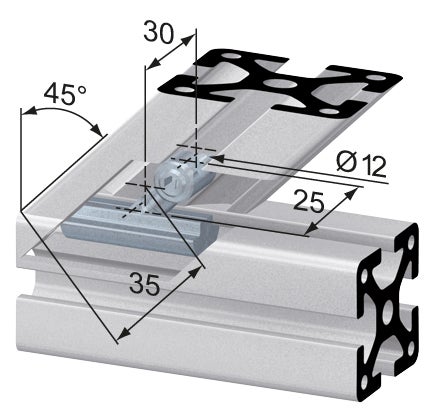

Bore hole for the barrel housing: Ø 12 mm, 27 mm (35 mm) from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.

Product Information

Material: Steel, zinc-plated

System: 40 - Slot 8

Type: Fasteners

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	System	Weight (g)
SV1111V					Get quote	2	Central Fastener G 30 SS	40 - Slot 8	56
SV1151V					Get quote	2	Central Fastener G 45 SS	40 - Slot 8	57

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
