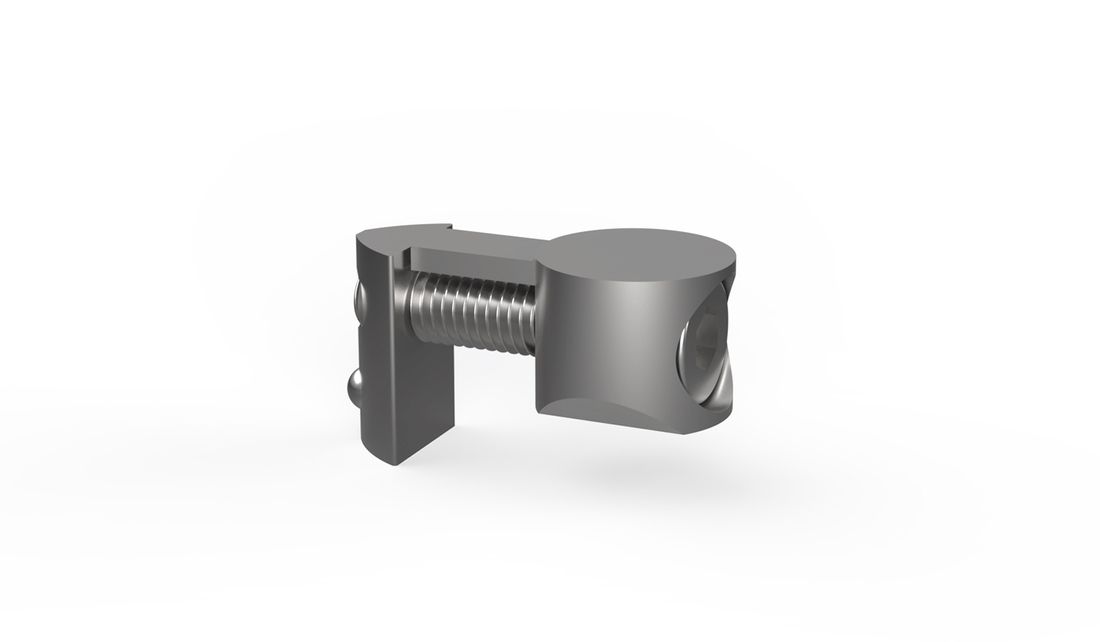

Universal Fastener

STOCK ITEM

Application:

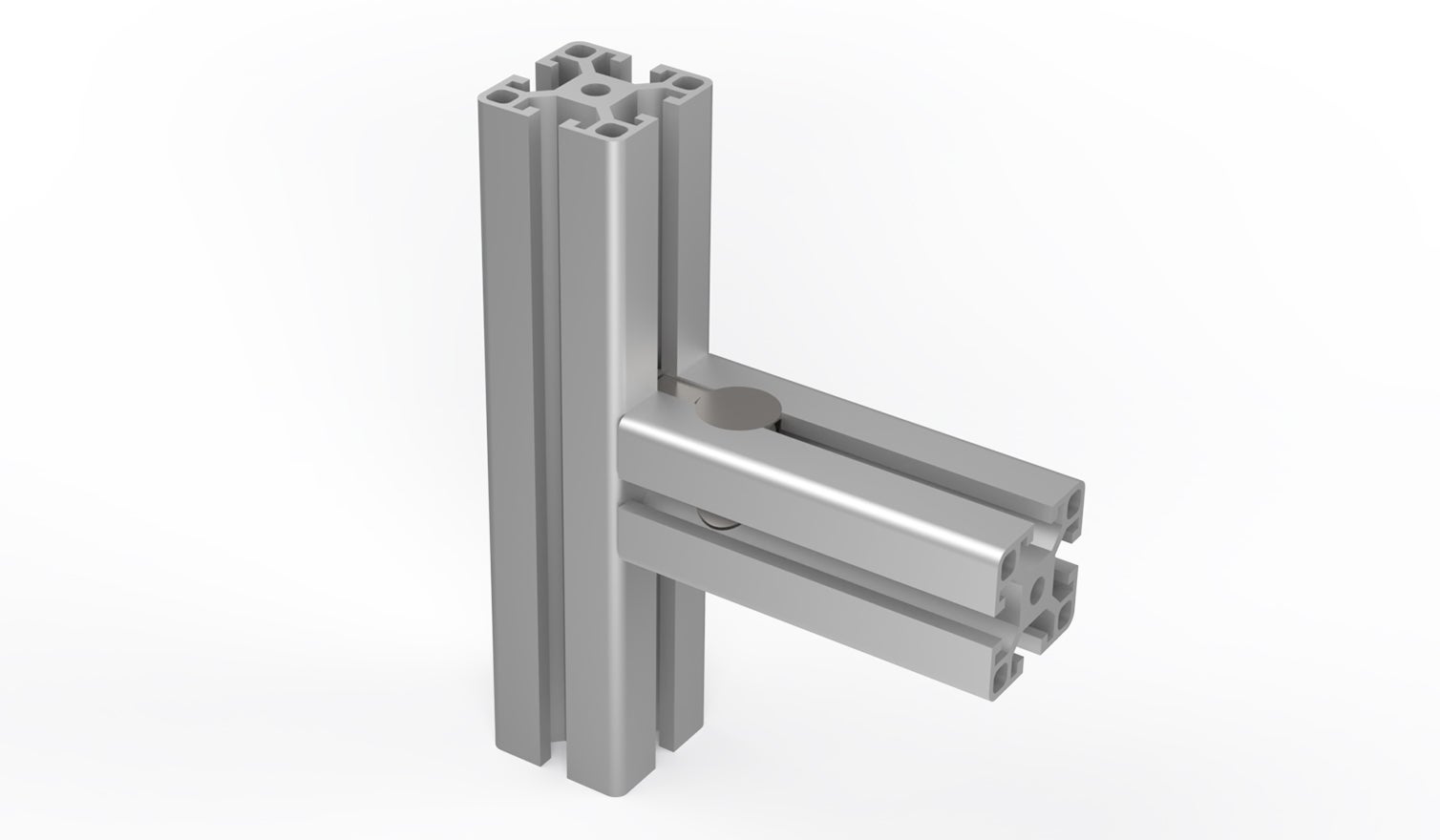

Universal fastener that links two aluminium profiles.

Assembly:

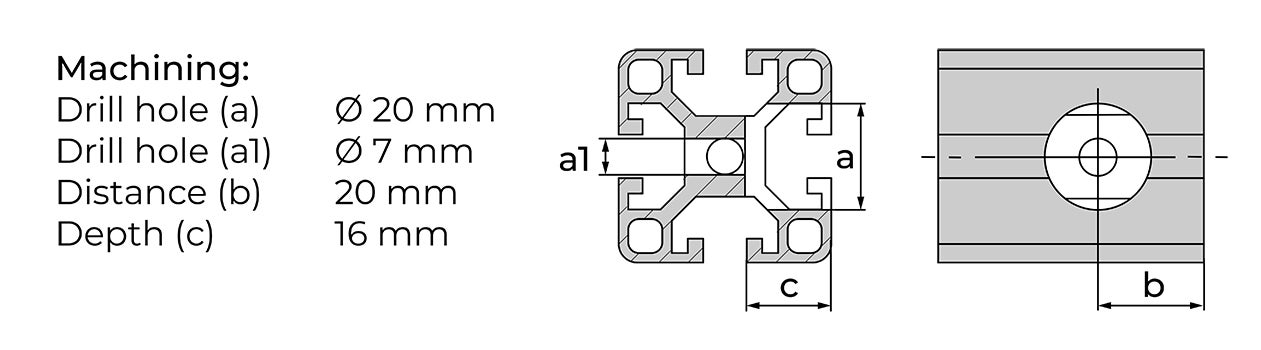

Bore hole for the fastener housing:
Ø 20 mm, 20 mm from the profile end, 16 mm deep.

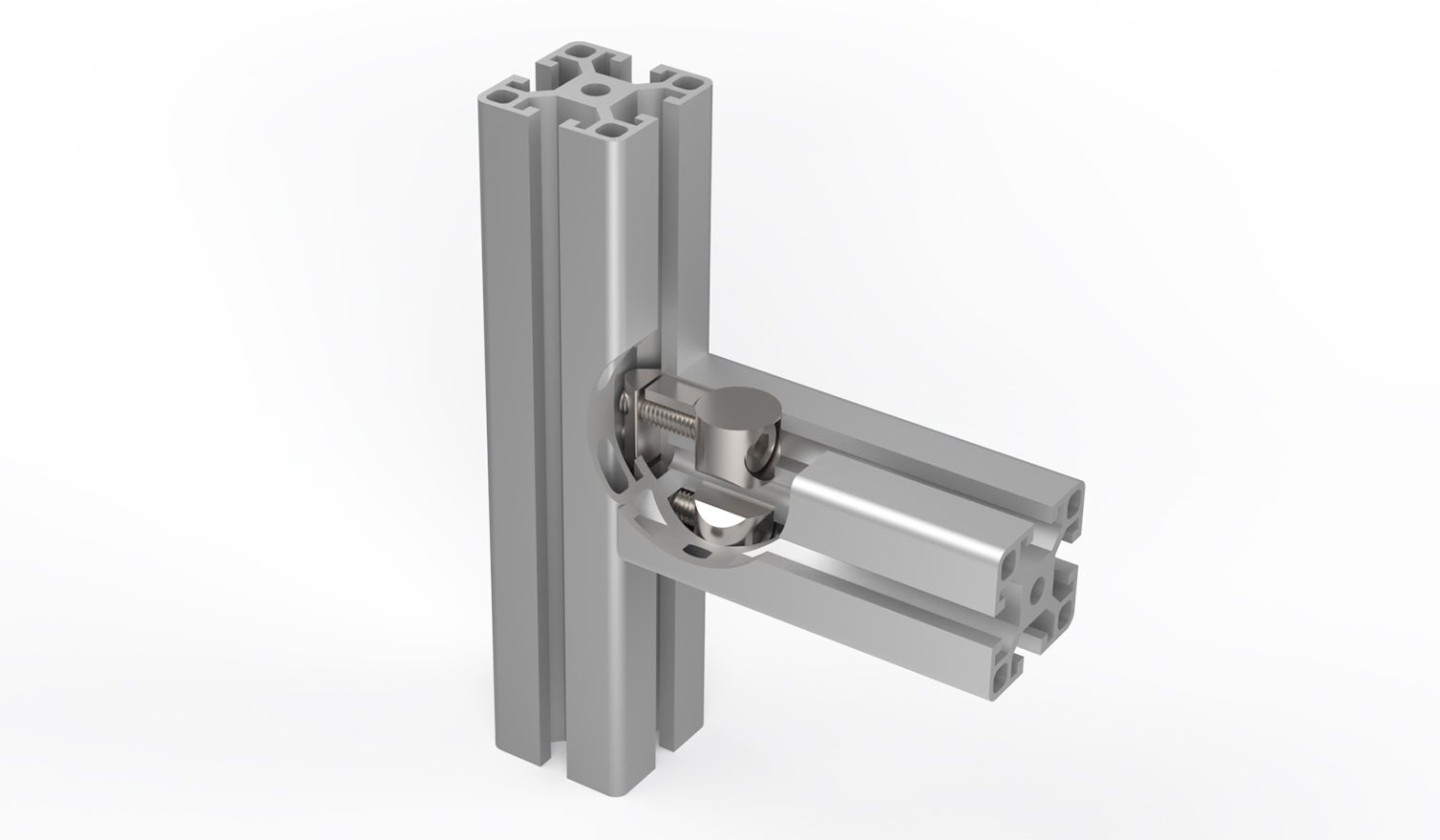

Insert T-nut into the slot of profile and tightened the cylinder screw.

Supply:
Set of universal fastener with guide lug and 8 mm hole. M8 slot nut and MC6S ISO4762 screw included.

Product Information

Material: Die-cast zinc

System: 40 - Slot 8

Type: Fasteners

Download PDF (all data) code.product.loadingpdf

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Select all	CAD	Compare	Get quote	Lead Time *	Description	System	Fmax (N)	Mmax (Nm)
PV1015					Get quote	1	Universal Fastener Set 8 with lug	40 - Slot 8	1750	80

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
