PNCE

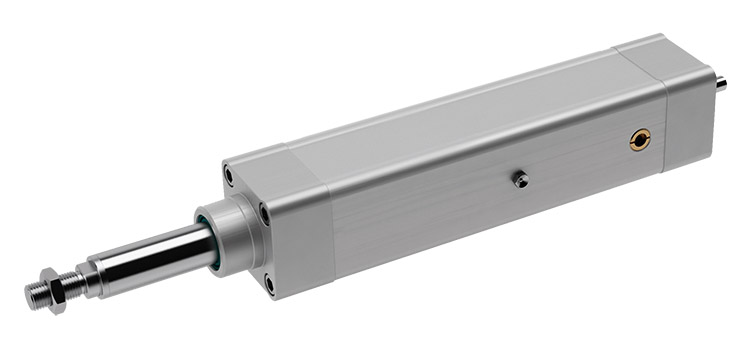

The electric cylinder is based on the standard ISO 15552. Its outer design and dimensions are very similar to pneumatic cylinders.
The precision ball screw with reduced backlash of the ball nut and non-rotating piston rod offers high performance. Preload is available on request.

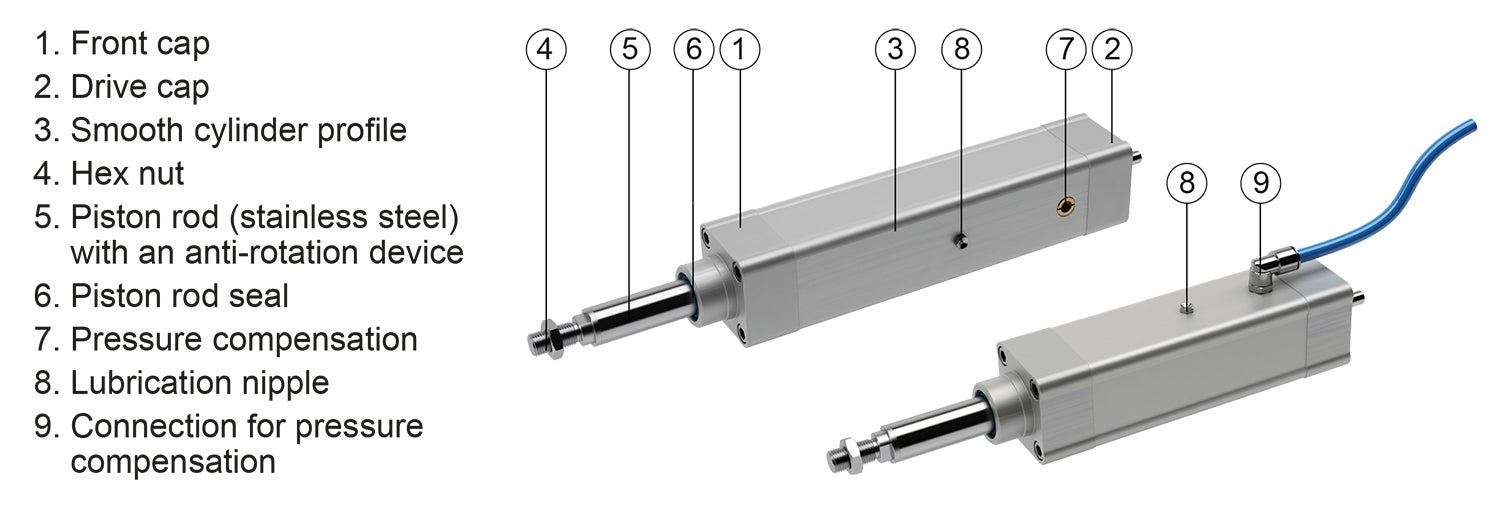

The excellent sealing of the components in the cylinder protects the interior of the cylinder from dust, water and other contaminants.
Note!
All the data of the dynamic load capacities (ball screw drive) stated in the table are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life. We recommend a minimum safety factor fₛ = 5,0, where fₛ is defined as fₛ = C / Fₘ. (Dynamic load capacity refers to the capacity of the ball screw drive.)
The max. axial load value needs to be considered when using the piston rod or mounting attachments’ accessories.
Maximum travel speed depends on the absolute stroke of the PNCE.
Contact us for further information.
Dimensions in mm.
Read more
The precision ball screw with reduced backlash of the ball nut and non-rotating piston rod offers high performance. Preload is available on request.
The excellent sealing of the components in the cylinder protects the interior of the cylinder from dust, water and other contaminants.
Note!
All the data of the dynamic load capacities (ball screw drive) stated in the table are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life. We recommend a minimum safety factor fₛ = 5,0, where fₛ is defined as fₛ = C / Fₘ. (Dynamic load capacity refers to the capacity of the ball screw drive.)
The max. axial load value needs to be considered when using the piston rod or mounting attachments’ accessories.
Maximum travel speed depends on the absolute stroke of the PNCE.
Contact us for further information.
Dimensions in mm.
Product Information
Axial Backlash (mm): < ±0.02
Max. Acceleration (m/s): 20
Operating Temperature (°C): 0 ~ +60
Protection Class: IP40, IP65
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Ball Screw (d x l) | Dynamic Load Capacity C (N) | Max. Axial Load Fmax (N) | Max. Drive Torque Mₚ (Nm) | Max. Travel Speed Vmax (m/s) | Max. Rotational Speed nmax (min⁻¹) | No Load Torque M₀ (Nm) | Min. Stroke Smin (mm) | Max. Stroke Smax (mm) | Moved Mass (kg) | Mass of the Electric Cylinder mPNCE (kg) | Mass Moment of Inertia JPNCE (10⁻⁶ kg m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 12 × 5 mm | 5000 | 2540 | 2.2 | 0.48 | 5800 | 0.1 | 30 | 800 | 0.32 + 0.0010 × (Absolute stroke + E) | 1.10 + 0.0043 × Absolute stroke + 0.0010 × E | 2.15 + 0.0128 × Absolute stroke + 0.0006 × E + 0.6333 × mload | ||
|
|
|
2 | 12 × 10 mm | 3800 | 1270 | 2.2 | 0.97 | 5800 | 0.15 | 30 | 800 | 0.32 + 0.0010 × (Absolute stroke + E) | 1.10 + 0.0043 × Absolute stroke + 0.0010 × E | 2.75 + 0.0147 × Absolute stroke + 0.0025 × E + 2.5330 × mload | ||
|
|
|
2 | 16 × 5 mm | 13150 | 6020 | 5.3 | 0.35 | 4200 | 0.15 | 40 | 900 | 0.44 + 0.0007 × (Absolute stroke + E) | 1.45 + 0.0051 × Absolute stroke + 0.0007 × E | 4.50 + 0.0395 × Absolute stroke + 0.0004 × E + 0.6333 × mload | ||
|
|
|
2 | 16 × 10 mm | 11550 | 3010 | 5.3 | 0.7 | 4200 | 0.2 | 35 | 900 | 0.44 + 0.0007 × (Absolute stroke + E) | 1.45 + 0.0051 × Absolute stroke + 0.0007 × E | 5.35 + 0.0408 × Absolute stroke + 0.0018 × E + 2.5330 × mload | ||
|
|
|
2 | 16 × 16 mm | 8170 | 1880 | 5.3 | 1.12 | 4200 | 0.25 | 35 | 900 | 0.44 + 0.0007 × (Absolute stroke + E) | 1.45 + 0.0051 × Absolute stroke + 0.0007 × E | 7.10 + 0.0436 × Absolute stroke + 0.0046 × E + 6.4846 × mload | ||
|
|
|
2 | 20 × 5 mm | 14800 | 14600 | 12.9 | 0.28 | 3300 | 0.3 | 50 | 1000 | 0.95 + 0.0012 × (Absolute stroke + E) | 2.50 + 0.0073 × Absolute stroke + 0.0012 × E | 17.75 + 0.0817 × Absolute stroke + 0.0007 × E + 0.6333 × mload | ||
|
|
|
2 | 20 × 10 mm | 15900 | 7830 | 13.9 | 0.55 | 3300 | 0.35 | 55 | 1000 | 0.95 + 0.0012 × (Absolute stroke + E) | 2.50 + 0.0073 × Absolute stroke + 0.0012 × E | 19.55 + 0.0839 × Absolute stroke + 0.0030 × E + 2.5330 × mload | ||
|
|
|
2 | 20 × 20 mm | 16250 | 3900 | 13.9 | 1.1 | 3300 | 0.4 | 50 | 1000 | 0.95 + 0.0012 × (Absolute stroke + E) | 2.50 + 0.0073 × Absolute stroke + 0.0012 × E | 26.75 + 0.0928 × Absolute stroke + 0.0118 × E + 10.1321 × mload | ||
|
|
|
2 | 20 × 50 mm | 13000 | 1560 | 13.9 | 2.5 | 3000 | 0.5 | 30 | 1000 | 0.88 + 0.0012 × (Absolute stroke + E) | 2.43 + 0.0073 × Absolute stroke + 0.0012 × E | 73.80 + 0.1549 × Absolute stroke + 0.0740 × E + 63.3257 × mload | ||
|
|
|
2 | 25 × 5 mm | 16700 | 16500 | 14.6 | 0.23 | 2700 | 0.5 | 40 | 1200 | 1.00 + 0.0011 × (Absolute stroke + E) | 3.05 + 0.0097 × Absolute stroke + 0.0011 × E | 32.55 + 0.2358 × Absolute stroke + 0.0007 × E + 0.6333 × mload | ||
|
|
|
2 | 25 × 10 mm | 15800 | 15800 | 28 | 0.45 | 2700 | 0.55 | 40 | 1200 | 1.00 + 0.0011 × (Absolute stroke + E) | 3.05 + 0.0097 × Absolute stroke + 0.0011 × E | 34.45 + 0.2378 × Absolute stroke + 0.0028 × E + 2.5330 × mload | ||
|
|
|
2 | 25 × 25 mm | 16700 | 7940 | 35.1 | 1.13 | 2700 | 0.65 | 30 | 1200 | 0.98 + 0.0011 × (Absolute stroke + E) | 3.03 + 0.0097 × Absolute stroke + 0.0011 × E | 47.30 + 0.2523 × Absolute stroke + 0.0172 × E + 15.8314 × mload | ||
|
|
|
2 | 32 × 5 mm | 18850 | 18850 | 16.7 | 0.18 | 2150 | 0.65 | 60 | 1500 | 2.15 + 0.0028 × (Absolute stroke + E) | 6.48 + 0.0156 × Absolute stroke + 0.0028 × E | 118.14 + 0.6514 × Absolute stroke + 0.0018 × E + 0.6333 × mload | ||
|
|
|
2 | 32 × 10 mm | 37000 | 25000 | 44.2 | 0.5 | 3000 | 0.7 | 60 | 1500 | 2.15 + 0.0028 × (Absolute stroke + E) | 6.48 + 0.0156 × Absolute stroke + 0.0028 × E | 122.23 + 0.6567 × Absolute stroke + 0.0071 × E + 2.5330 × mload | ||
|
|
|
2 | 32 × 20 mm | 22950 | 17160 | 60.7 | 1 | 3000 | 0.75 | 70 | 1500 | 2.15 + 0.0028 × (Absolute stroke + E) | 6.48 + 0.0156 × Absolute stroke + 0.0028 × E | 138.60 + 0.6781 × Absolute stroke + 0.0285 × E + 10.1321 × mload | ||
|
|
|
2 | 32 × 32 mm | 15500 | 10725 | 60.7 | 1.6 | 3000 | 0.9 | 70 | 1500 | 2.15 + 0.0028 × (Absolute stroke + E) | 6.48 + 0.0156 × Absolute stroke + 0.0028 × E | 172.65 + 0.7227 × Absolute stroke + 0.0731 × E + 25.9382 × mload | ||
|
|
|
2 | 40 × 5 mm | 23800 | 23800 | 21 | 0.18 | 2200 | 1 | 45 | 1500 | 3.21 + 0.0047 × (Absolute stroke + E) | 10.12 + 0.0245 × Absolute stroke + 0.0047 × E | 342.17 + 1.6613 × Absolute stroke + 0.0030 × E + 0.6333 × mload | ||
|
|
|
2 | 40 × 10 mm | 38000 | 29000 | 51.3 | 0.37 | 2200 | 1.1 | 55 | 1500 | 3.21 + 0.0047 × (Absolute stroke + E) | 10.12 + 0.0245 × Absolute stroke + 0.0047 × E | 348.27 + 1.6701 × Absolute stroke + 0.0118 × E + 2.5330 × mload | ||
|
|
|
2 | 40 × 20 mm | 33300 | 29000 | 102.6 | 0.73 | 2200 | 1.2 | 65 | 1500 | 3.21 + 0.0047 × (Absolute stroke + E) | 10.12 + 0.0245 × Absolute stroke + 0.0047 × E | 372.67 + 1.7056 × Absolute stroke + 0.0473 × E + 10.1321 × mload | ||
|
|
|
2 | 40 × 40 mm | 35000 | 22980 | 162.6 | 1.47 | 2200 | 1.4 | 80 | 1500 | 3.54 + 0.0047 × (Absolute stroke + E) | 10.61 + 0.0245 × Absolute stroke + 0.0047 × E | 483.41 + 1.8476 × Absolute stroke + 0.1893 × E + 40.5285 × mload |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | P1 | P2 | P3 | P4 | P5 | P6 | P7 | G | D1 | D2 | D3 | D4 | M1 | M2 | M3 | H | A1 | A2 | A3 | ZK1 | ZK2 | ZK3 | V1 | V2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
136 (+0.2/-1.4) | 48 | 21 | 26 (+1.9/-0.8) | 15 | 22.5 | 20 | 15 | 30 | 30 | 5 | 4 (±0.1) | 18 (±0.1) | 47 | 32.5 | G 1/8 | Ø 18 (f8) | Ø 30 (d11) | Ø 6 (h7) | Ø 30 (g7) | Ø M10 × 1.25 | Ø M10 × 1.25 | M6 | Ø 8 | 22 | 5 | 5 | 10 | 17 | 16 | 16 | 4.5 | ||
|
|
|
136 (+0.2/-1.4) | 48 | 21 | 26 (+1.9/-0.8) | 15 | 22.5 | 20 | 15 | 30 | 30 | 5 | 4 (±0.1) | 18 (±0.1) | 47 | 32.5 | G 1/8 | Ø 18 (f8) | Ø 30 (d11) | Ø 6 (h7) | Ø 30 (g7) | Ø M10 × 1.25 | Ø M10 × 1.25 | M6 | Ø 8 | 22 | 5 | 5 | 10 | 17 | 16 | 16 | 4.5 | ||
|
|
|
144 (+0.2/-1.4) | 54 | 25 | 30 (+1.9/-0.8) | 15 | 22.5 | 20 | 18 | 30 | 30 | 5 | 4 (±0.1) | 20 (±0.1) | 54 | 38 | G 1/8 | Ø 20 (f8) | Ø 35 (d11) | Ø 8 (h7) | Ø 35 (g7) | Ø M12 × 1.25 | Ø M12 × 1.25 | M6 | Ø 8 | 24 | 6 | 6 | 13 | 19 | 17 | 16 | 4.5 | ||
|
|
|
144 (+0.2/-1.4) | 54 | 25 | 30 (+1.9/-0.8) | 15 | 22.5 | 20 | 18 | 30 | 30 | 5 | 4 (±0.1) | 20 (±0.1) | 54 | 38 | G 1/8 | Ø 20 (f8) | Ø 35 (d11) | Ø 8 (h7) | Ø 35 (g7) | Ø M12 × 1.25 | Ø M12 × 1.25 | M6 | Ø 8 | 24 | 6 | 6 | 13 | 19 | 17 | 16 | 4.5 | ||
|
|
|
144 (+0.2/-1.4) | 54 | 25 | 30 (+1.9/-0.8) | 15 | 22.5 | 20 | 18 | 30 | 30 | 5 | 4 (±0.1) | 20 (±0.1) | 54 | 38 | G 1/8 | Ø 20 (f8) | Ø 35 (d11) | Ø 8 (h7) | Ø 35 (g7) | Ø M12 × 1.25 | Ø M12 × 1.25 | M6 | Ø 8 | 24 | 6 | 6 | 13 | 19 | 17 | 16 | 4.5 | ||
|
|
|
180 (+0.2/-1.4) | 69 | 32 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 36 | 37 | 5 | 4 (±0.1) | 25 (±0.1) | 65 | 46.5 | G 1/8 | Ø 25 (f8) | Ø 40 (d11) | Ø 11 (h7) | Ø 40 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 22 | 18 | 4.5 | ||
|
|
|
180 (+0.2/-1.4) | 69 | 32 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 36 | 37 | 5 | 4 (±0.1) | 25 (±0.1) | 65 | 46.5 | G 1/8 | Ø 25 (f8) | Ø 40 (d11) | Ø 11 (h7) | Ø 40 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 22 | 18 | 4.5 | ||
|
|
|
180 (+0.2/-1.4) | 69 | 32 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 36 | 37 | 5 | 4 (±0.1) | 25 (±0.1) | 65 | 46.5 | G 1/8 | Ø 25 (f8) | Ø 40 (d11) | Ø 11 (h7) | Ø 40 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 22 | 18 | 4.5 | ||
|
|
|
180 (+0.2/-1.4) | 69 | 32 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 36 | 37 | 5 | 4 (±0.1) | 25 (±0.1) | 65 | 46.5 | G 1/8 | Ø 25 (f8) | Ø 40 (d11) | Ø 11 (h7) | Ø 40 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 22 | 18 | 4.5 | ||
|
|
|
171 (+0.2/-1.4) | 69 | 38 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 38 | 38 | 5 | 4 (±0.1) | 25 (±0.1) | 75 | 56.5 | G 1/8 | Ø 30 (f8) | Ø 45 (d11) | Ø 15 (h7) | Ø 45 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 27 | 18 | 4.5 | ||
|
|
|
171 (+0.2/-1.4) | 69 | 38 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 38 | 38 | 5 | 4 (±0.1) | 25 (±0.1) | 75 | 56.5 | G 1/8 | Ø 30 (f8) | Ø 45 (d11) | Ø 15 (h7) | Ø 45 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 27 | 18 | 4.5 | ||
|
|
|
171 (+0.2/-1.4) | 69 | 38 | 37 (+1.9/-0.8) | 15 | 22.5 | 20 | 25 | 38 | 38 | 5 | 4 (±0.1) | 25 (±0.1) | 75 | 56.5 | G 1/8 | Ø 30 (f8) | Ø 45 (d11) | Ø 15 (h7) | Ø 45 (g7) | Ø M16 × 1.5 | Ø M16 × 1.5 | M8 | Ø 8 | 32 | 8 | 8 | 17 | 24 | 27 | 18 | 4.5 | ||
|
|
|
204 (+0.2/-1.4) | 86 | 40 | 46 (+1.9/-0.8) | 15 | 22.5 | 20 | 30 | 40 | 40 | 18 | 14 (±0.1) | 31 (±0.1) | 93 | 72 | G 1/8 | Ø 40 (f8) | Ø 60 (d11) | Ø 18 (h7) | Ø 60 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 8 | 40 | 8 | 10 | 22 | 30 | 32 | 17 | / | ||
|
|
|
204 (+0.2/-1.4) | 86 | 40 | 46 (+1.9/-0.8) | 15 | 22.5 | 20 | 30 | 40 | 40 | 18 | 14 (±0.1) | 31 (±0.1) | 93 | 72 | G 1/8 | Ø 40 (f8) | Ø 60 (d11) | Ø 18 (h7) | Ø 60 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 8 | 40 | 8 | 10 | 22 | 30 | 32 | 17 | / | ||
|
|
|
204 (+0.2/-1.4) | 86 | 40 | 46 (+1.9/-0.8) | 15 | 22.5 | 20 | 30 | 40 | 40 | 18 | 14 (±0.1) | 31 (±0.1) | 93 | 72 | G 1/8 | Ø 40 (f8) | Ø 60 (d11) | Ø 18 (h7) | Ø 60 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 8 | 40 | 8 | 10 | 22 | 30 | 32 | 17 | / | ||
|
|
|
204 (+0.2/-1.4) | 86 | 40 | 46 (+1.9/-0.8) | 15 | 22.5 | 20 | 30 | 40 | 40 | 18 | 14 (±0.1) | 31 (±0.1) | 93 | 72 | G 1/8 | Ø 40 (f8) | Ø 60 (d11) | Ø 18 (h7) | Ø 60 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 8 | 40 | 8 | 10 | 22 | 30 | 32 | 17 | / | ||
|
|
|
224 (+0.2/-1.4) | 91 | 50 | 46 (+1.9/-0.8) | 15 | 22.5 | 20 | 30 | 42 | 42 | 20 | 18 (±0.1) | 34 (±0.1) | 110 | 89 | G 3/8 | Ø 50 (f8) | Ø 70 (d11) | Ø 25 (h7) | Ø 60 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 12 | 40 | 8 | 10 | 22 | 30 | 40 | 17 | / | ||
|
|
|
224 (+0.2/-1.4) | 91 | 50 | 51 (+1.9/-0.8) | 25 | 28.5 | 28 | 30 | 42 | 42 | 20 | 18 (±0.1) | 34 (±0.1) | 110 | 89 | G 3/8 | Ø 50 (f8) | Ø 70 (d11) | Ø 25 (h7) | Ø 70 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 12 | 40 | 6 | 10 | 22 | 30 | 40 | 17 | / | ||
|
|
|
224 (+0.2/-1.4) | 91 | 50 | 51 (+1.9/-0.8) | 25 | 28.5 | 28 | 30 | 42 | 42 | 20 | 18 (±0.1) | 34 (±0.1) | 110 | 89 | G 3/8 | Ø 50 (f8) | Ø 70 (d11) | Ø 25 (h7) | Ø 70 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 12 | 40 | 6 | 10 | 22 | 30 | 40 | 17 | / | ||
|
|
|
239 (+0.2/-1.4) | 91 | 50 | 51 (+1.9/-0.8) | 25 | 28.5 | 28 | 30 | 42 | 42 | 20 | 18 (±0.1) | 34 (±0.1) | 110 | 89 | G 3/8 | Ø 50 (f8) | Ø 70 (d11) | Ø 25 (h7) | Ø 70 (g7) | Ø M20 × 1.5 | Ø M12 | M10 | Ø 12 | 40 | 6 | 10 | 22 | 30 | 40 | 17 | / |
-
-
